Semi-automatic four-axis developer

Uniform machine_Fully automatic developing machine

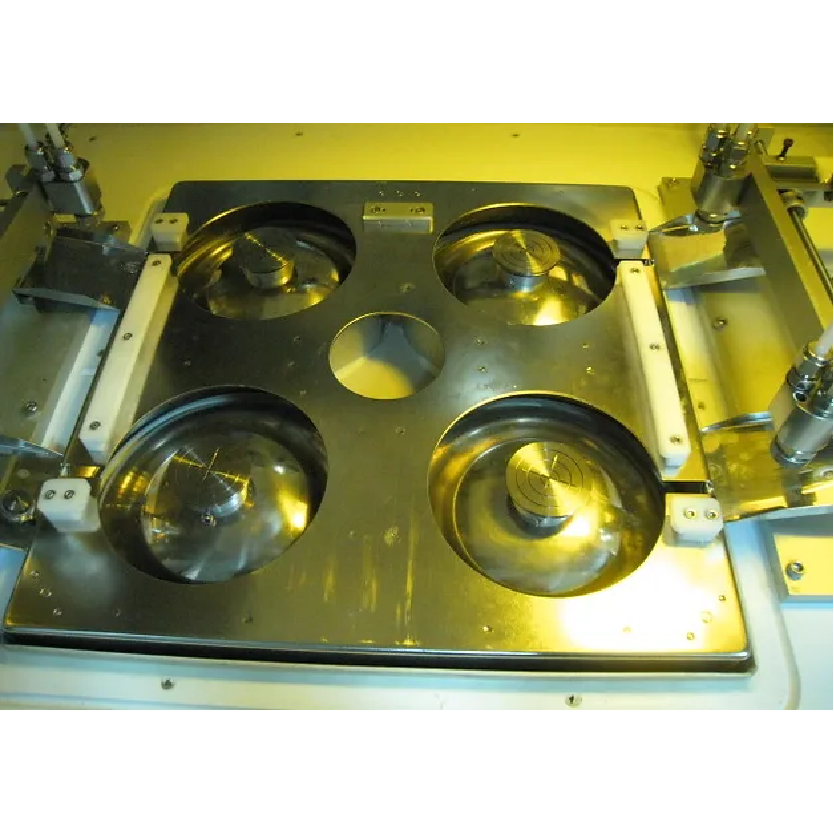

Four-axis 3”~6” wafers are used, the spindle speed is up to 6000RPM, and four baskets (100 pieces) can be fed and four baskets (100 pieces) can be received.

Adopt HITECH man-machine interface 5.7"+PLC FACON

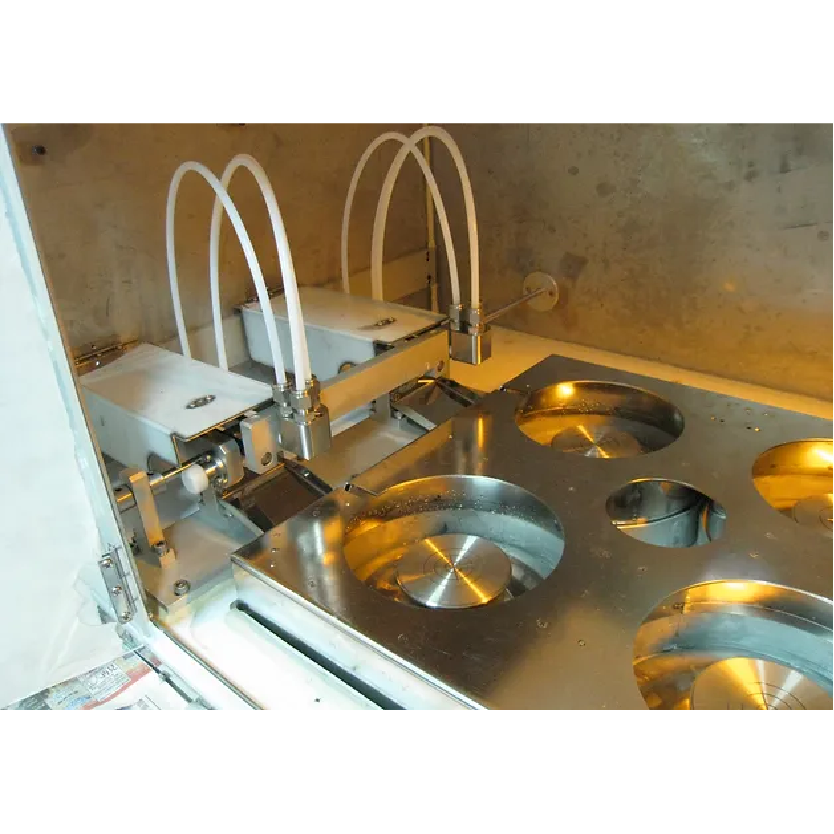

■ The suction cup axis has the function of back spray prevention: the central gas-liquid separation and collection sedimentation cylinder, and the closed working area prevents the pollution of the working environment.

■ Operation procedure: Material development

1. Select the recipe to use

2. Put the material into the feeding area

3. Press the start button.

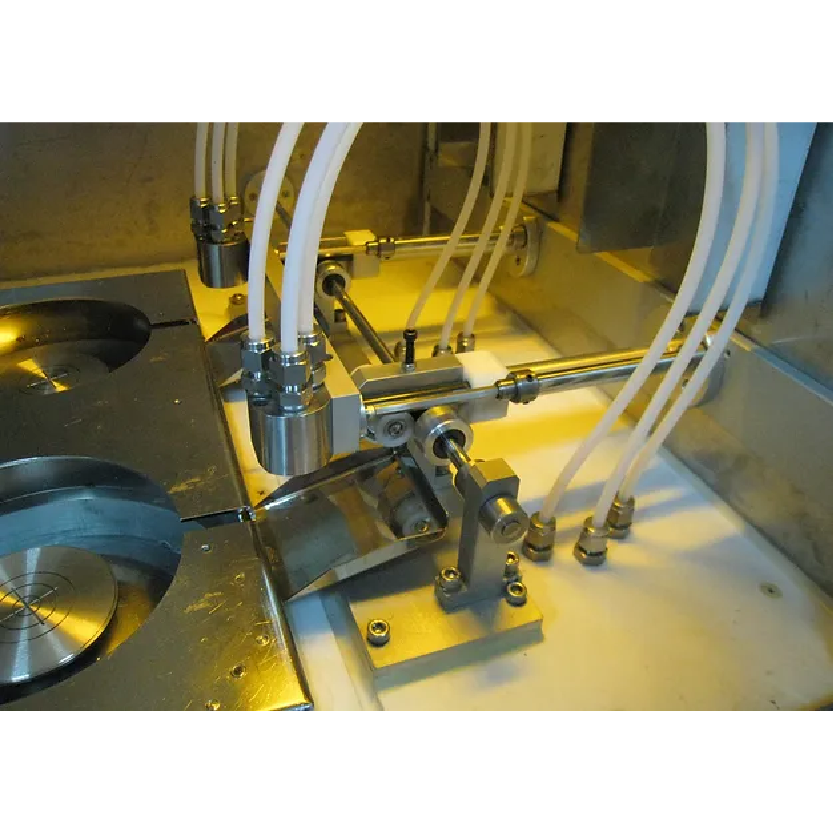

■ Produce Ability: Programmable setting of the print head group to run can be divided into operation, the hourly output can be up to 190 pieces.

■ External Dimensions Weight:

• Width 1050 x L: 1400 x H.2100 mm

■ heavy   quantity:

• Weight about 500kg
